Pv Module Bypass Diode. Photovoltaics in the shade one bypass diode per solar cell revisited Pannebakker 2017 Solar modules with bypass diodes are manufactured because of two reasons Figure 3 shows the simple working of a bypass diode

Bypass Diodes are used in parallel with either a single or a number of photovoltaic solar cells to prevent the current(s) flowing from good, well-exposed to sunlight solar cells overheating and burning out weaker or partially shaded solar cells by providing a current path around the bad cell The maximum group size per diode, without causing damage, is about 15 cells/bypass diode, for silicon cells

Energies Free FullText A Comprehensive Review on Bypass Diode Application on Photovoltaic

For a normal 36 cell module, therefore, 2 bypass diodes are used to ensure the module will not be vulnerable to "hot-spot" damage For a normal 36 cell module, therefore, 2 bypass diodes are used to ensure the module will not be vulnerable to "hot-spot" damage Then, it gives a thorough review of recently published research, as well as the state of the art in the field.

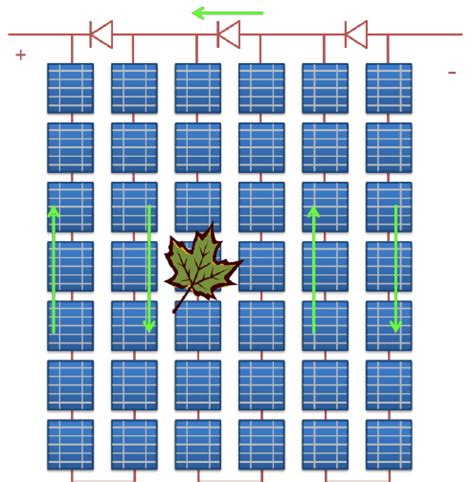

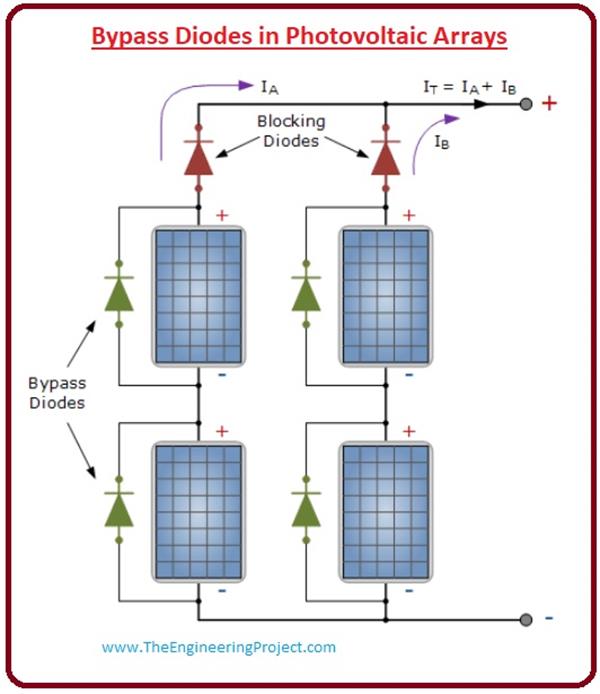

2x2 PV array with bypass diodes across each PV module and blocking diodes. Download Scientific. For a normal 36 cell module, therefore, 2 bypass diodes are used to ensure the module will not be vulnerable to "hot-spot" damage Many high end solar panels have the bypass diode in pv module as they are fabricated directly onto the semiconductor photovoltaic cell structure.

Bypass Diode in solar Panel explained. YouTube. The bypass diodes' function is to eliminate the reverse bias hot-spot phenomena which can damage PV cells and even cause fire if the light hitting the surface of the PV cells in a module is not uniform Then, it gives a thorough review of recently published research, as well as the state of the art in the field.
